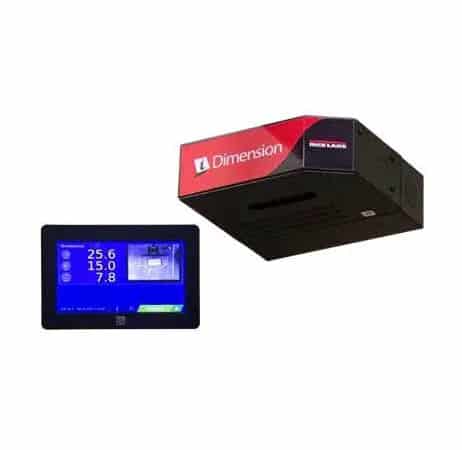

iDimension Plus XL



The iDimension® Plus XL is specifically designed for integrators to provide flexibility in the installation of a dimensioning solution anywhere over a conveyor, table or scale from a pole, ceiling mount or support beam. An optional stand is available for ease of integration over a static roller conveyor at 60.2 inches (Legal for Trade) or 79 inches above the platform. The iDimension Plus XL can be used with UPS Worldship and a barcode scanner to add barcode data to process records.

Displays dimensions in less than 0.2 seconds
Dimensions parcels at 0.2 in Legal for Trade accuracy
Dimensions irregular shape packages, polybags and uneven shapes to 0.5 in
Legal for Trade accuracy
Dimensions flats, parcels, letters or items less than 2.4 in H when installed at 79 in above platform
7 in USB touch screen display provides results, operator controls for operator standard functions with 118 in cable length
Automatic Operating and Manual modes
Limited operator training
Captures overhead photo of every item, available in .bmp or .jpg format through XML API integration
