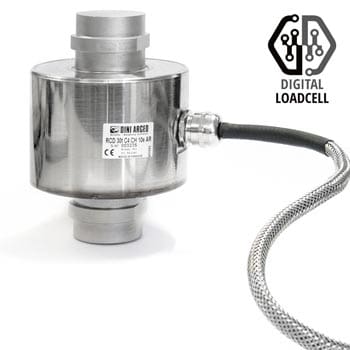

Digital Column Load Cell – Stainless Steel RCD Series

$0.00

Clear

Digital version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, with IP68 protection, 4000 divisions, fitted with “rodent proof” armoured cable



METROLOGICAL:

Rated capacity (Cn): 30/40t
Combined error: ± 0,014 %Cn
Temperature effect on zero: 0,0016 %Cn/°C
Temperature effect on sensitivity: 0,0012 %Cn/°C
Creep error (30 min.): 0,021 %Cn



LEGAL METROLOGY OIML R60

Accuracy class: C4
Max. number of intervals (nmax): 4000e OIML
Minimum verification interval (vmin): 10000
Z= Emax/(2xDR): 4000



ELECTRICAL

Nominal range of excitation voltage: 10 - 16Vdc
Rated output: 200000d
Current consumption: 35mA
Conversion type: Delta-sigma
Internal resolution: 24 bit
Converter rate: max. 100 conv./sec.
RS485 interface communication rate: 4800/19200 bit/sec.
Protection against electrostatic discharge according to IEC 61326-1

Features

  • Service temperature range: -20 ~ +60 °C
  • Compensated temperature range: -10 ~ +40 °C
  • Safe load limit: 150% Emax
  • Ultimate overload: 300% Emax
  • Protection degree IP68
  • Load cells with stainless steel body
  • 6-core armoured cable, PVC sheath, 18m length.
  • Nickel plated steel cable gland.
  • Armoured Anti Rodent Cable with Stainless Steel Armour.
  • Self-centring spherical bases.

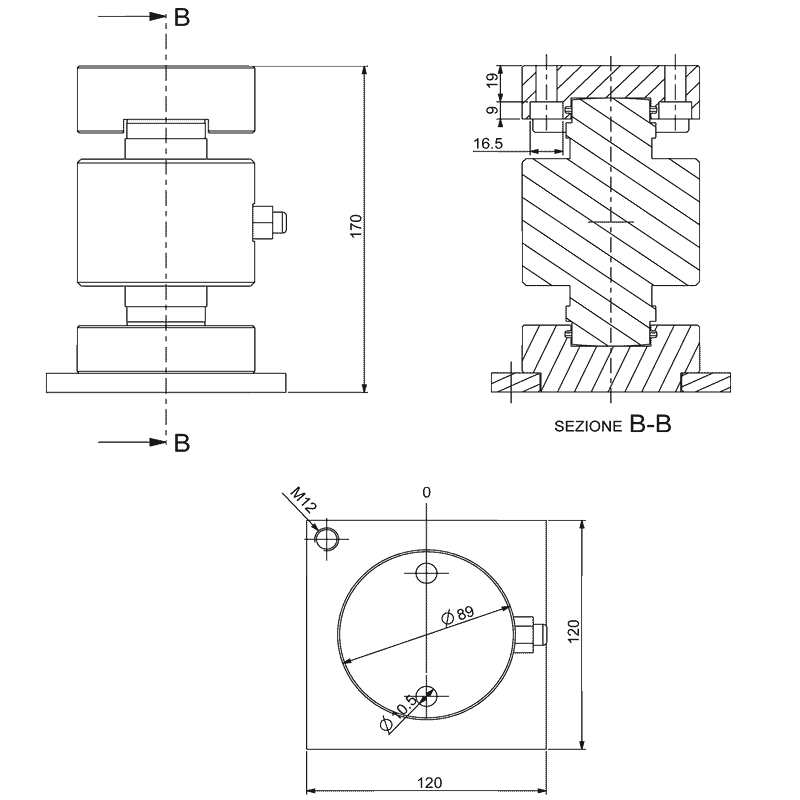

  • Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.
